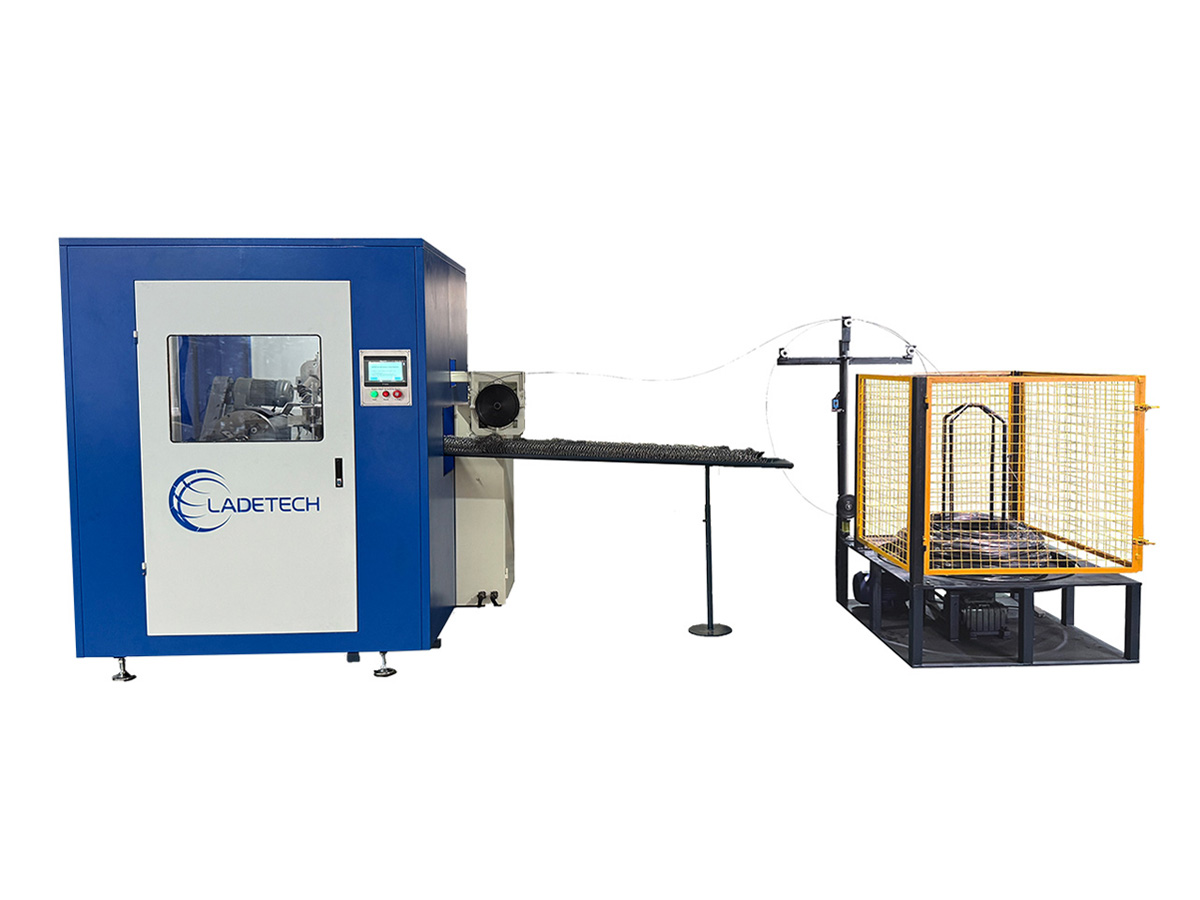

LDT-80 High Speed Bonnell Spring Coiling Machine - Ladetech Mattress Machine

Capacity

80pcs/min

Spring End Ring

Φ62-95MM

Spring Wire Diameter

Φ1.9-2.4mm

Spring Height

70-190mm



Contact Us Send Inquiry



Product Description



LDT-80 high speed bonnell spring coiling machine produces Bonnell spring units at speed of 80 pcs/min. In a complete circle procedure it includes wire coiling, knitting at both ring ends, heat treatment and delivery to outlet channel.The bonnell spring coiler has integrated PLC and Servo control system, also with high sensitive touch screen. All machine functions including wire feeding length, heat treatment, self lubrication and self-protecting are automatically controlled.





Technical Characteristics

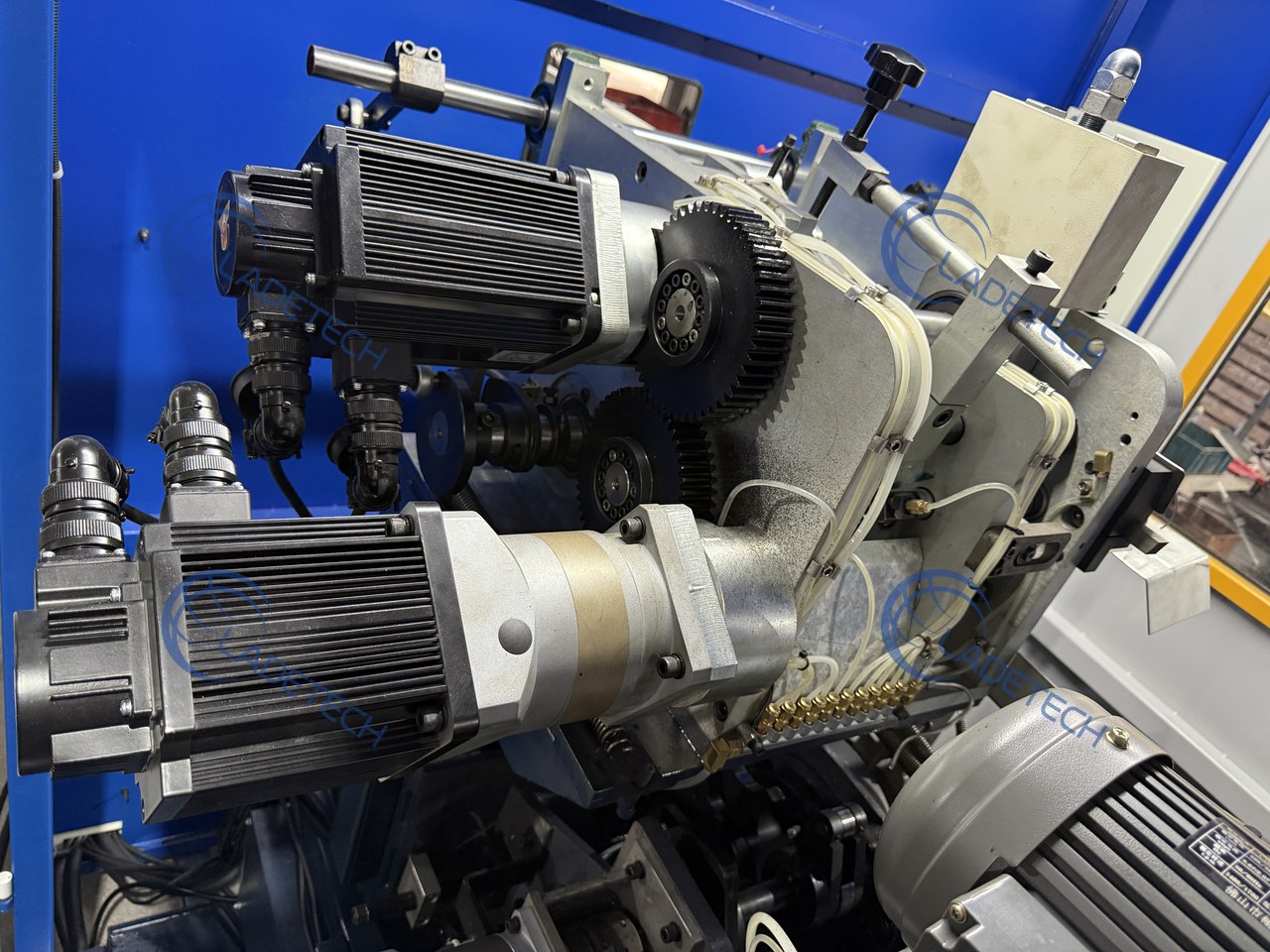

1. Servo motor control, more stable and efficient.

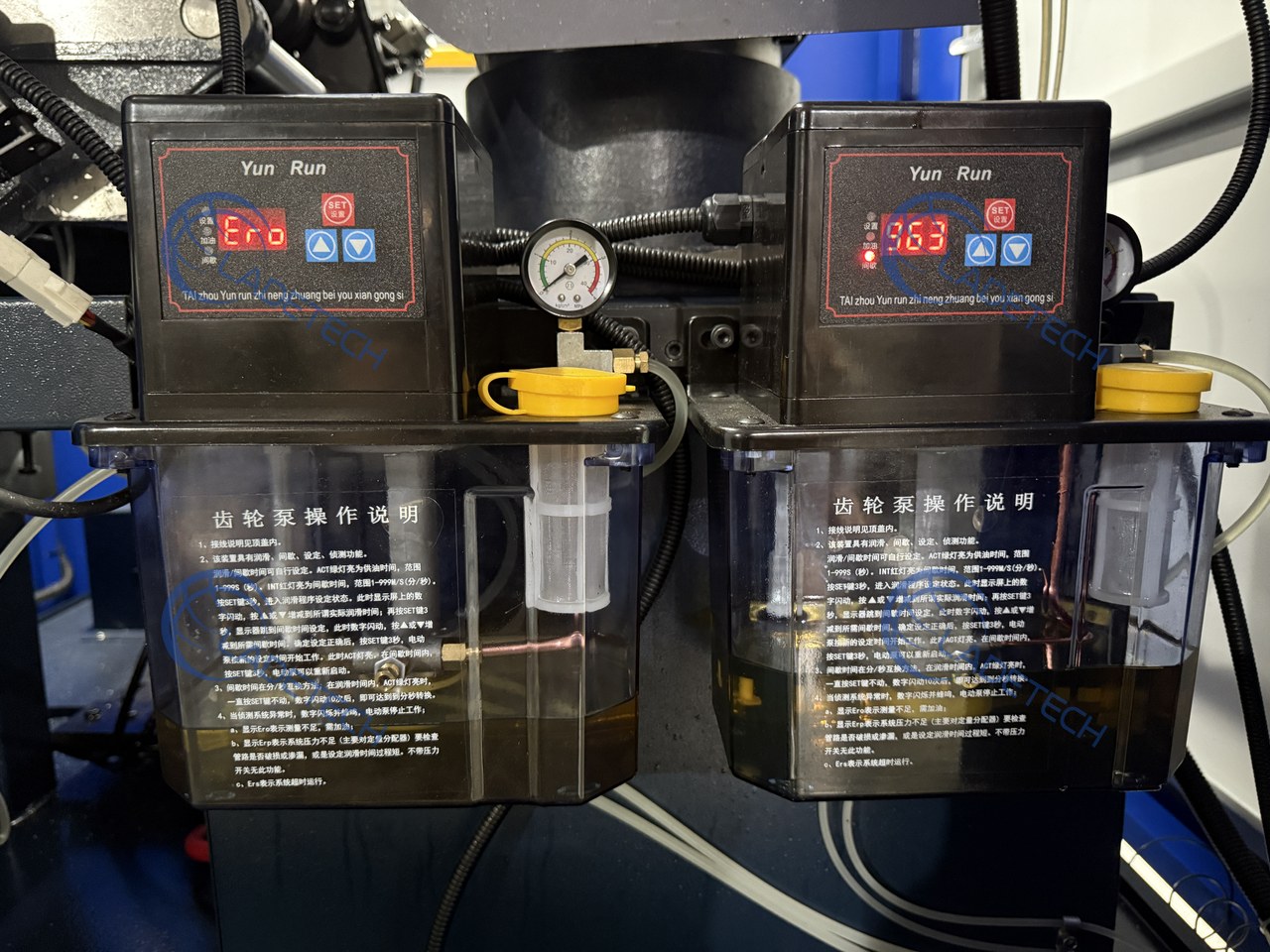

2. Self lubrication system ensures smooth running and longer service life, prevents mechanical spare parts being worn out.

3. Protection door can reduce machine running noises and protect operator’s safety.

4.Machine will automatically stop in case of any fault.

5.Easy and fast to change different bonnell spring specifications. Convenient to install and debug the bonnell spring coiling machine.

6. High capacity of 80pcs/min. It requires little labor operation.



Technical Specifications

Capacity

80pcs/min

Spring End Ring

Φ62-95MM

Spring Wire Diameter

Φ1.9-2.4mm

Spring Height

70-190mm (could be customized)

Spring Ring Turns

4-7 Turns

Main Drive Power

5.3 KW

Swift Frame Power

2.2KW

Heat Treatment

15KVA

Power Requirements

3 phase, 380V, 50-60HZ

Weight

2650 KG
