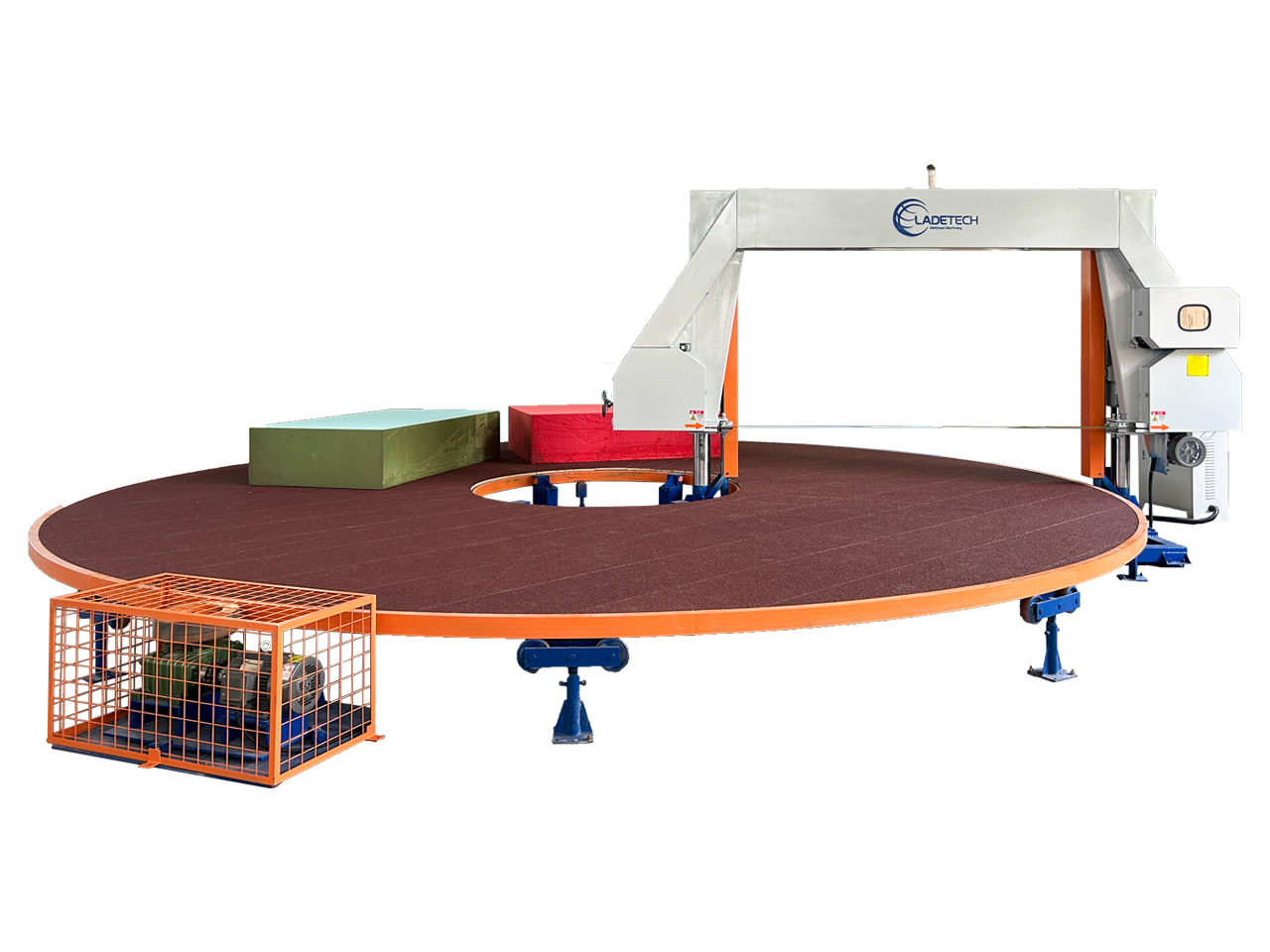

LDT-YP Horizontal Carousel Foam Cutting Machine - Ladetech Mattress Machine

Foam Block Size

L2000xW1500xH1200mm (5pcs)

Worktable Diameter

7 meter

Blade Length

10000 mm

Total Power

8.92KW
Contact Us Send Inquiry

Product Description

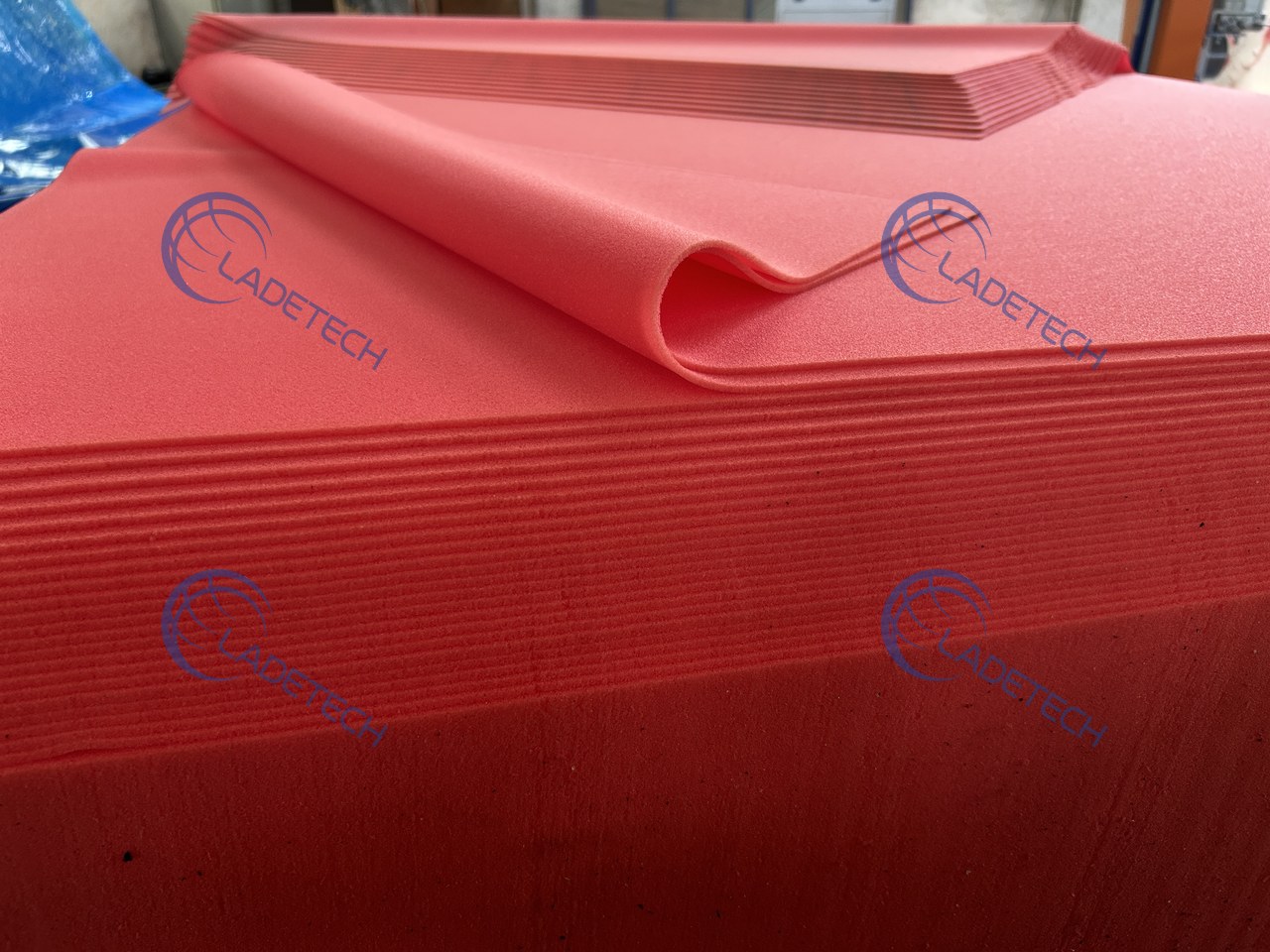

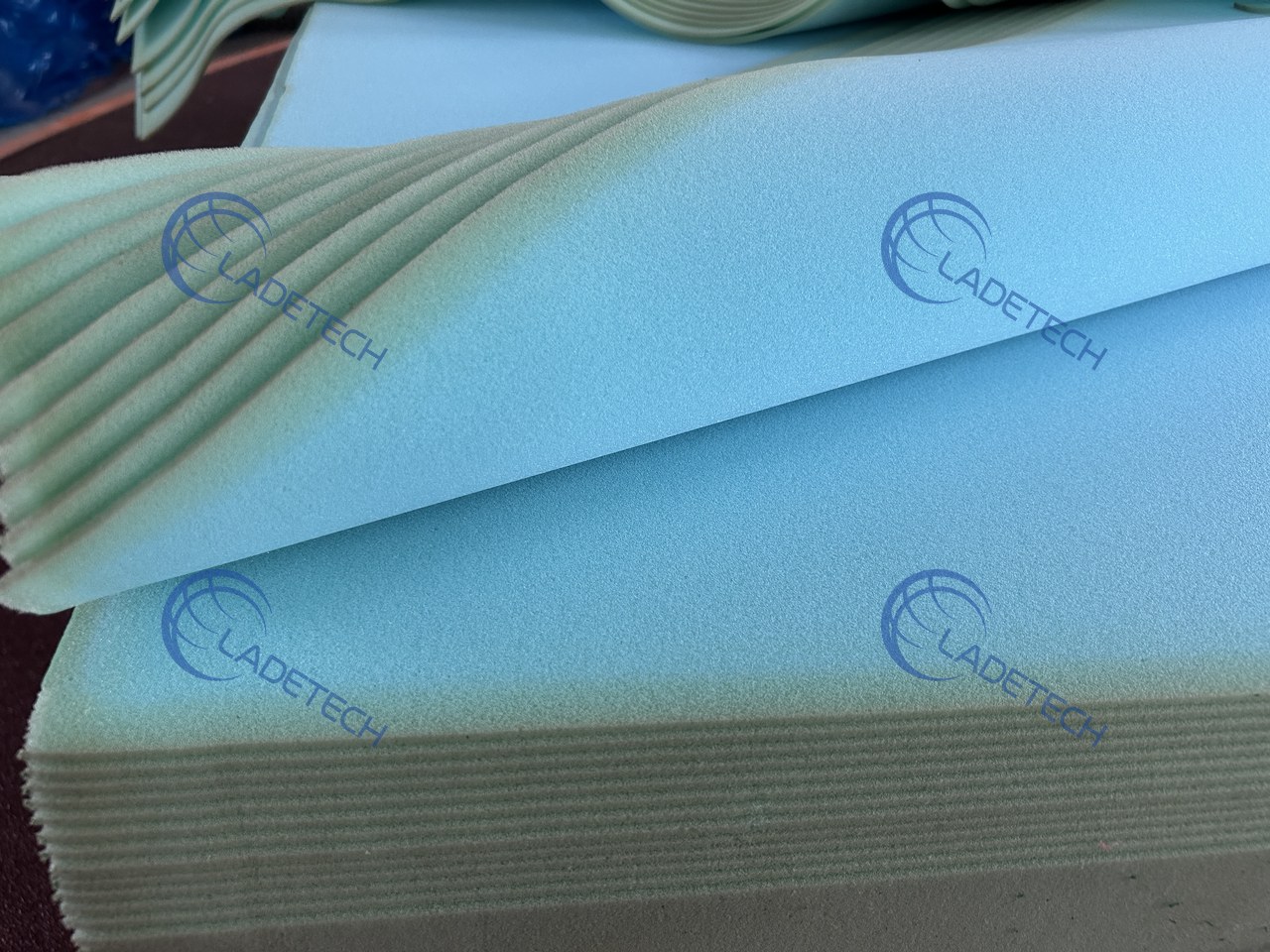

This machine is mostly used for slicing foam sheets from the foam blocks. There are options of 6m, 7m and 10m worktable diameter according to different production capacity. The cutting number, cutting thickness, foam density, working speed can be set by the control box. It has high automation level and working precision.

Technical Specification

Model

LDT-YP01

LDT-YP02

LDT-YP03

Foam Block Size

L2000xW1500xH1200mm(4pcs)

L2000xW1500xH1200mm (5pcs)

L2000xW1500xH1200mm (8pcs)

Foam Thickness

2-150mm

Turning Speed

0-3.5r/min

0-2.5r/min

Worktable Diameter

6 meter

7 meter

10 meter

Blade Length

8940mm

10000 mm

10380 mm

Total Power

8.92KW

8.92KW

10.52 KW
