This machine is suitable for pillow, backrest, sofa, cushion and any large product requiring filing of fiber cotton. Both the loosing and filling up of combed cotton operations are integrated and requires just one or two people to operate. The cotton can be placed onto the input conveyor belt and it gets to be fed into the machine automatically while ensuring the safety of the operator. The product filled with the cotton will retain fluffiness,maintaining the desired shape without unnecessary wastage of the cotton. This machine is suitable for both long/short fiber cotton or semi/fully silicon cotton.Use of each ton of raw cotton as compared with loosen cotton will allow savings of over 1000RMB per ton,resulting in increased productively and reducing your raw material cost. This machine can be connected to cotton feeder machine resulting in a automated cotton loosing and filling machine.That will reduce the need to manually feeding cotton into the machine. Product suitable for 3D-25D fibre cotton-combing and hot air cotton,needle cotton,collodion cotton and other fibre products including re-loosening of scrap materials.

English España Pоссия
  1. HOME
  2. Pillow Filling Machine

PILLOW MACHINE

Hot Product

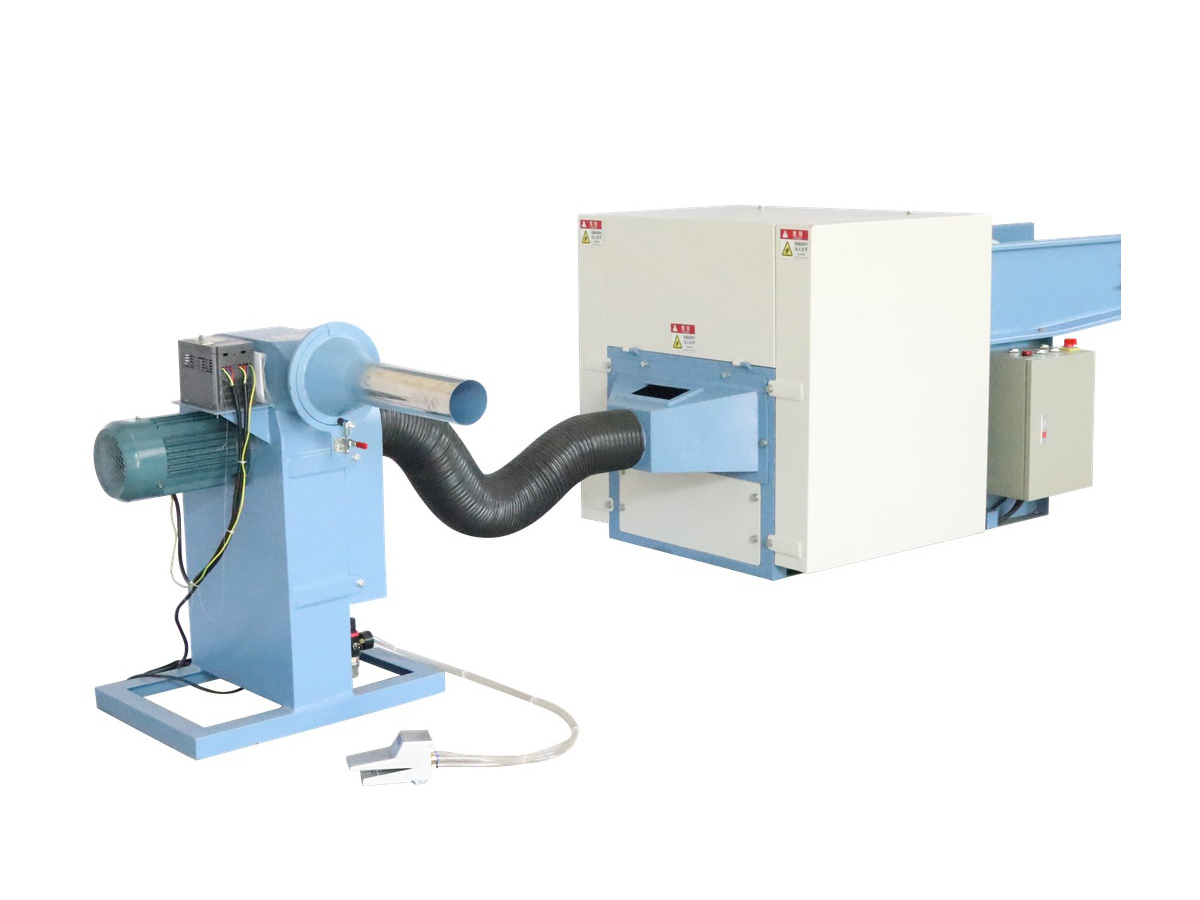

LDT-PSF Fiber Shredding And Pillow Filling Machine-Ladetech

Dimension

3300×720×920mm

Power Input

380V  50HZ

Cotton Filling Sprout Diameter

4+0.75+2.2KW
Contact Us Send Inquiry

Product Description

This Machine Is Suitable For Pillow, Backrest, Sofa, Cushion And Any Large Product Requiring Filing Of Fiber Cotton. Both The Loosing And Filling Up Of Combed Cotton Operations Are Integrated And Requires Just One Or Two People To Operate. The Cotton Can Be Placed Onto The Input Conveyor Belt And It Gets To Be Fed Into The Machine Automatically While Ensuring The Safety Of The Operator. The Product Filled With The Cotton Will Retain Fluffiness,Maintaining The Desired Shape Without Unnecessary Wastage Of The Cotton. This Machine Is Suitable For Both Long/Short Fiber Cotton Or Semi/Fully Silicon Cotton.Use Of Each Ton Of Raw Cotton As Compared With Loosen Cotton Will Allow Savings Of Over 1000Rmb Per Ton,Resulting In Increased Productively And Reducing Your Raw Material Cost. This Machine Can Be Connected To Cotton Feeder Machine Resulting In a Automated Cotton Loosing And Filling Machine.That Will Reduce The Need To Manually Feeding Cotton Into The Machine.Product Suitable For 3D-25D Fibre Cotton-Combing And Hot Air Cotton,Needle Cotton,Collodion Cotton And Other Fibre Products Including Re-Loosening Of Scrap Materials.

Technical Specifications

Model

LDT-PSF-360

LDT-PSF-560

LDT-PSF-790

Dimension

3300×720×920mm

3300×920×920mm

3300×1160×920mm

Power Input

380V  50HZ

Cotton Filling Sprout Diameter

4+0.75+2.2KW

4+0.75+2.2KW

5.5+0.75+2.2KW

Yield

50-80kg/H

100-180kg/H

180-280kg/H

Weight

515kg

595kg

680kg
