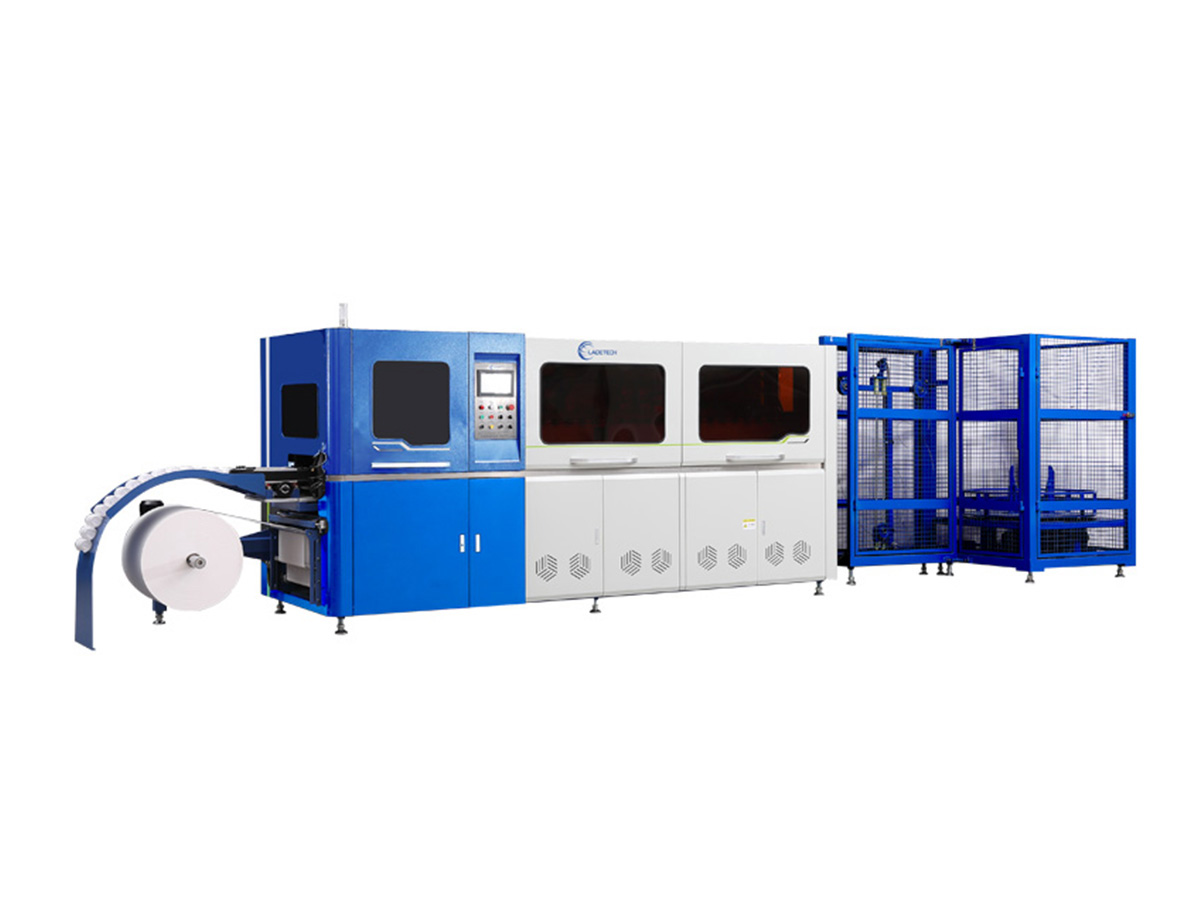

LDT-PS220 High Speed Pocket Spring Coiling Machine-Ladetech

Power Supply

40KW

Total Power

55KW

Air Requirement

0.02m³/min 0.8MPa
Contact Us Send Inquiry

Technical Characteristics:

1.Adapt to cylindrical and barrel shape springs.

2. The heat-treatment device can adapt to different spring height, easy for adjustment.

3. The non-woven feeder system, save material and labor.

4. Multiple fault detecting device, effectively reduced the wastage.

5. Use full-automatic coiling head, can make zone mattress, all parameters can be set by screen.

6. Special protective device

Technical Specifications

Efficiency (about)

220PCS/Min

Non-Woven Supply

60-100g/m²

Pocket Spring Height

80-250mm

(can be customized)

Wire Diameter.

Φ1.6-2.4mm

Spring Core Diameter.

Φ55-75mm

(can be customized)

Non-Woven Width

340-700mm

Power Supply

40KW

Total Power

55KW

Air Requirement

0.02m³/min 0.8MPa

Gross Weight

4500KG

Size(Main machine)

5500X1500X2000mm
